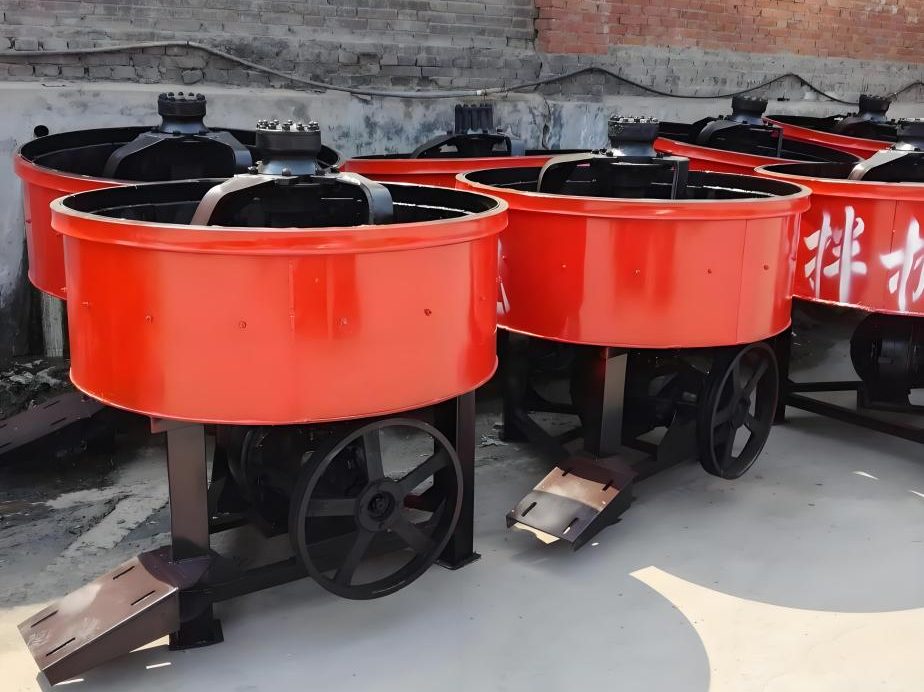

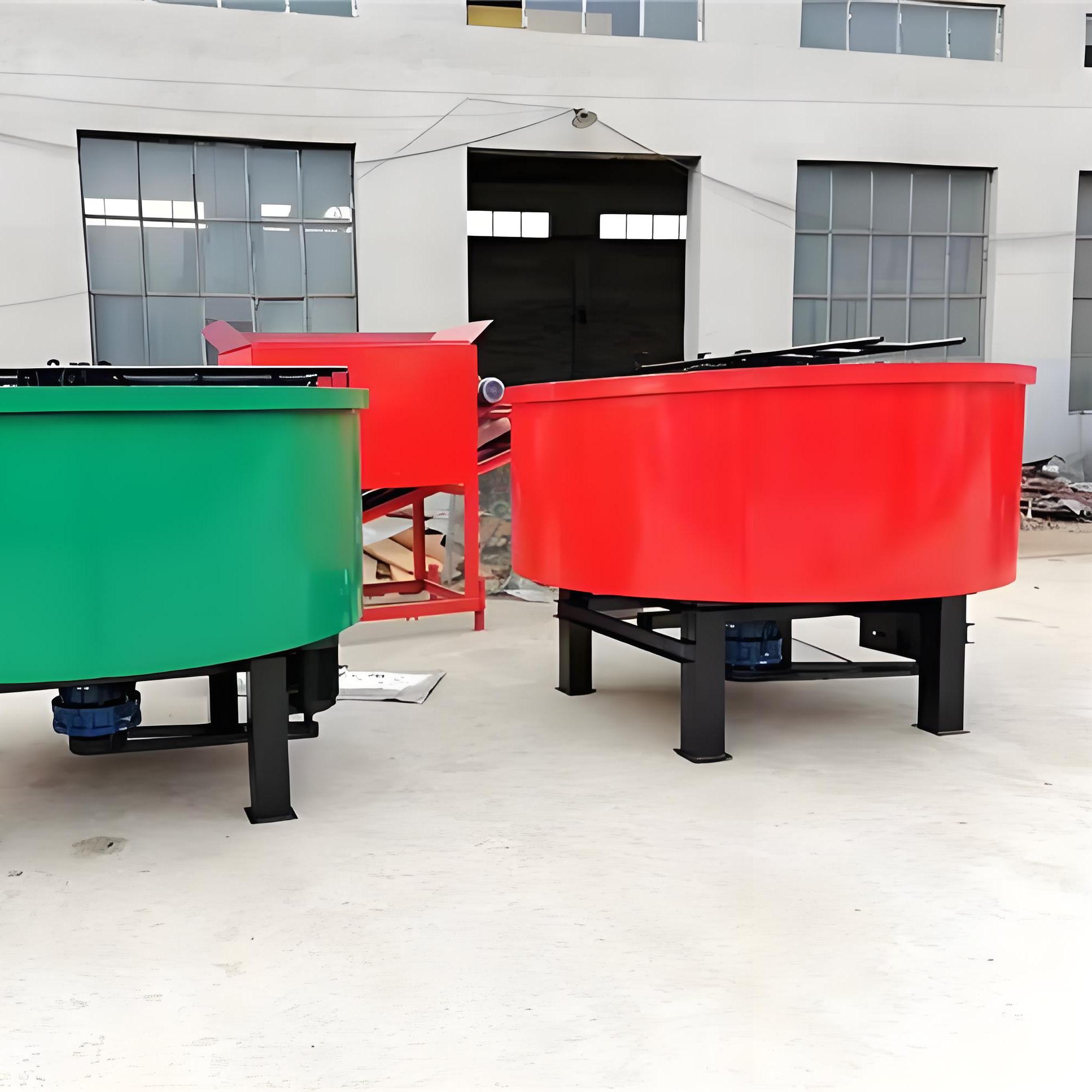

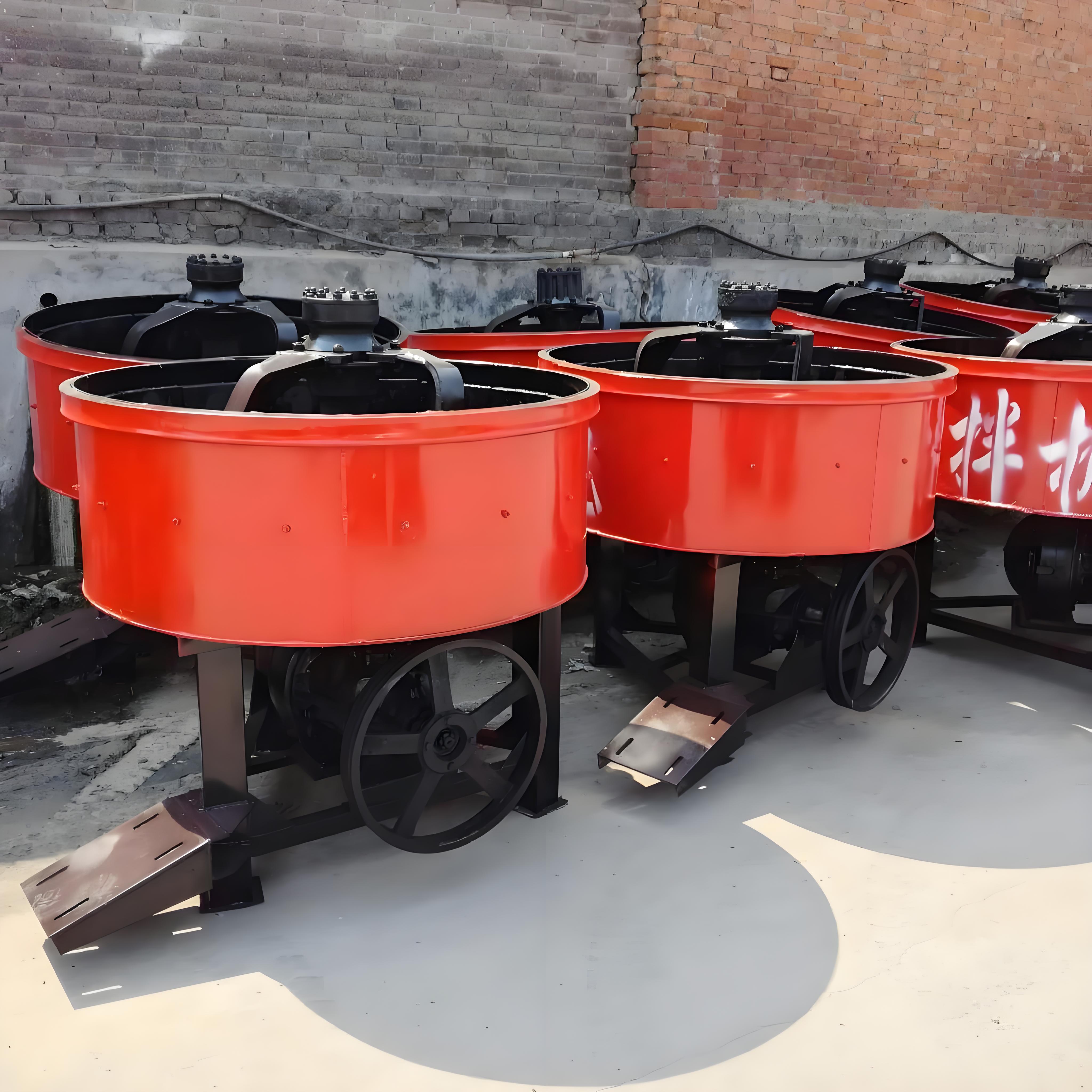

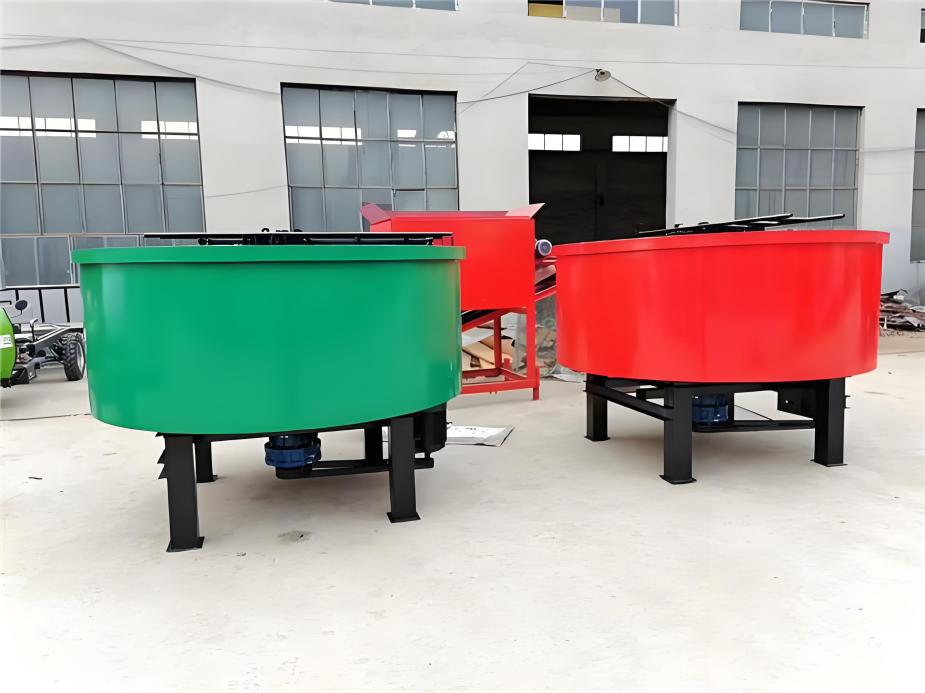

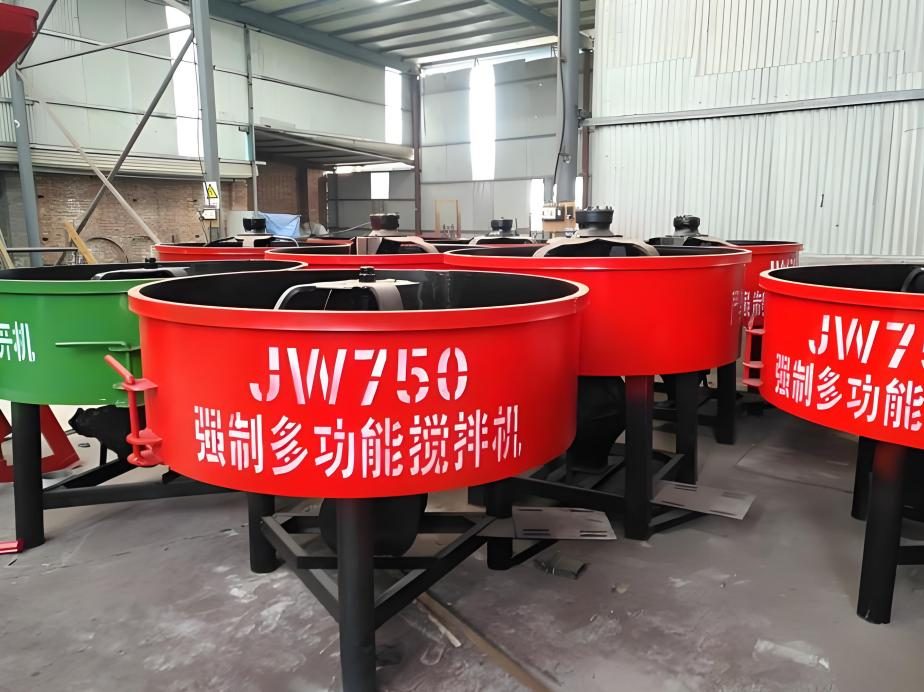

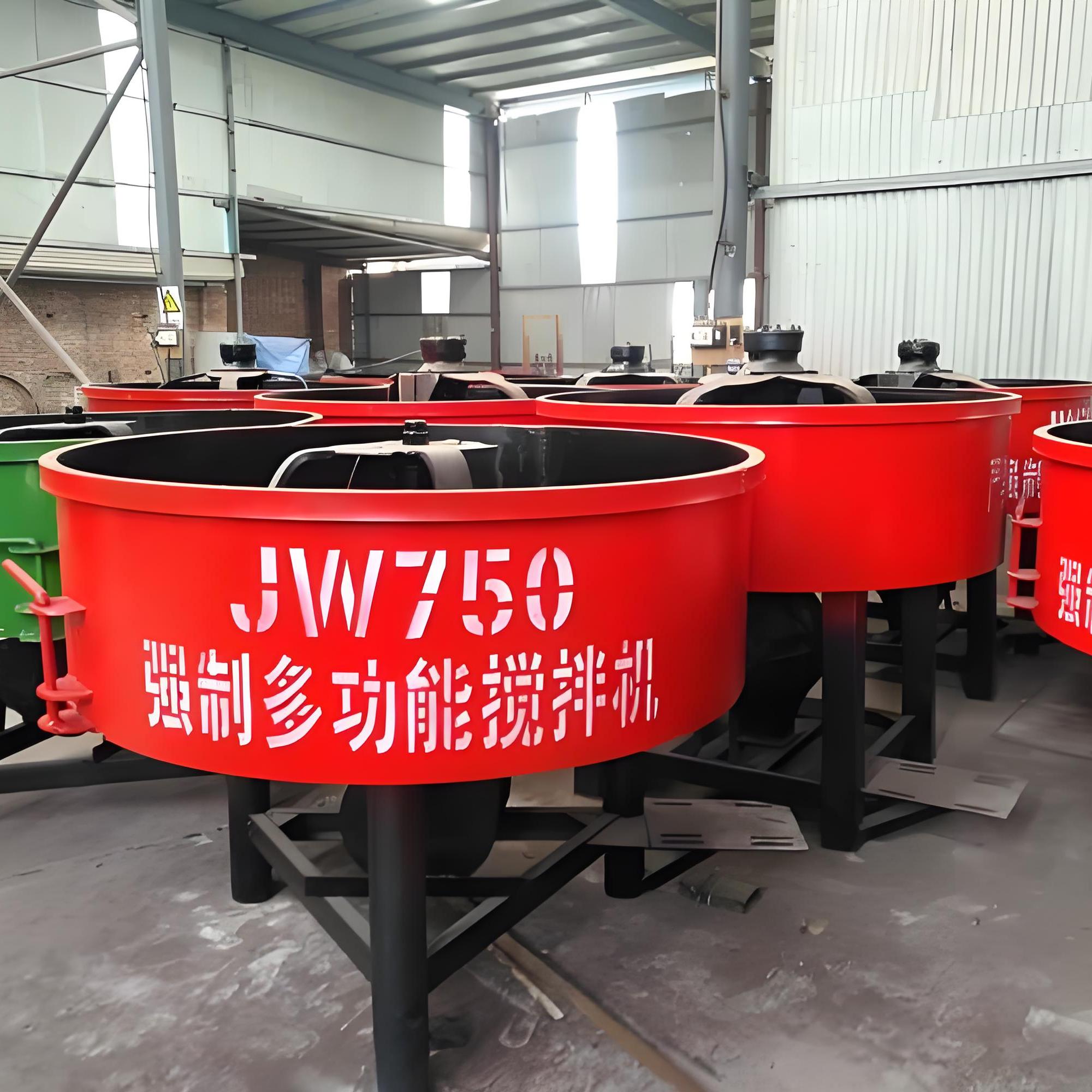

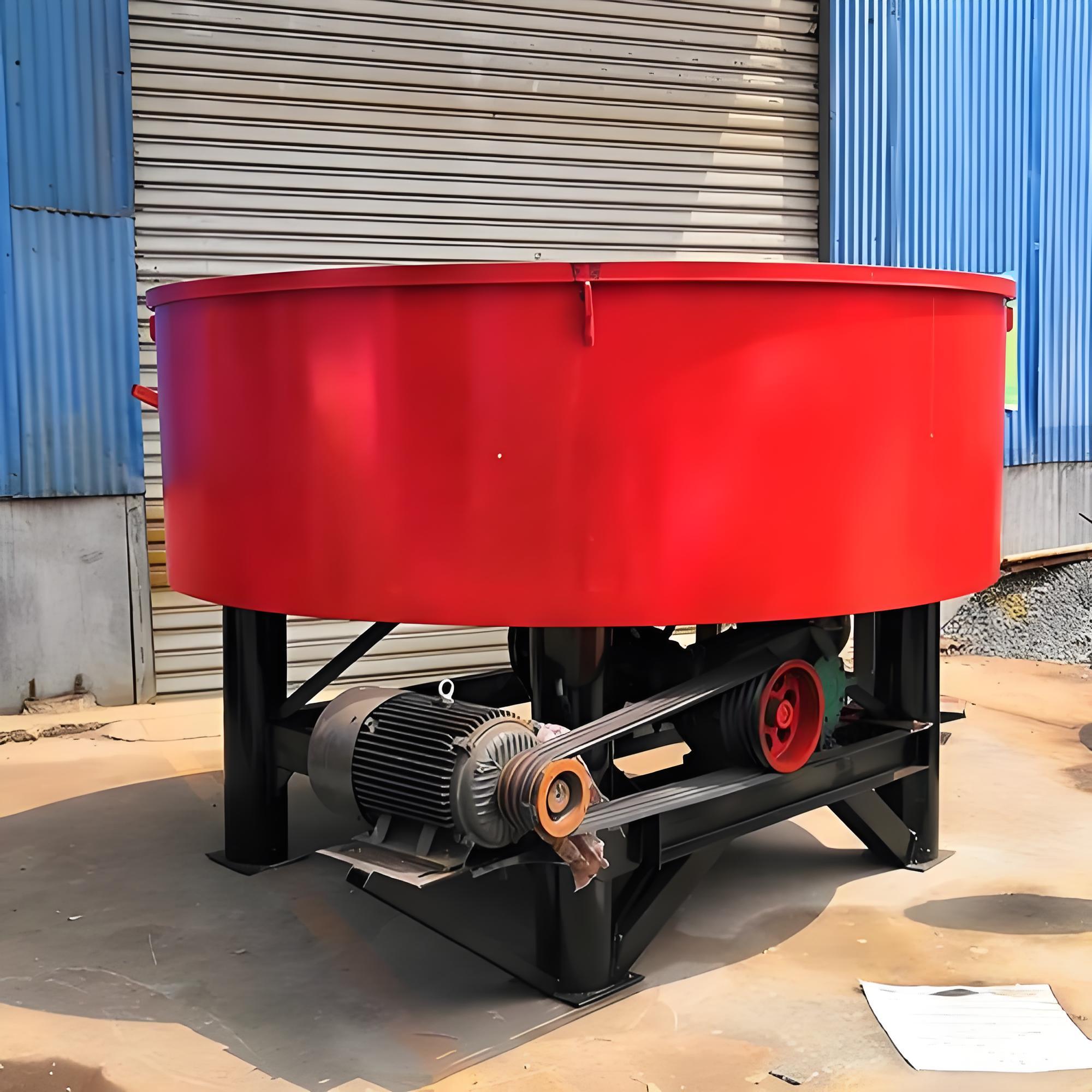

Flat mouth concrete mixer has simple structure and convenient operation, suitable for small and medium-sized projects. Its flat mouth design is convenient for material placing and discharging, with strong adaptability. Its high efficient mixing performance is suitable for mixing all kinds of building materials to ensure the uniformity and quality of concrete, it can mix many kinds of building materials efficiently and has low maintenance cost, it is especially suitable for the rapid construction needs of small and medium-sized projects, it is widely used in the fields of building site, road construction, bridge project and so on.
Phone:
+86-15939037000Email:
wenqiang@manxingim.com
The flat mixer adopts a flat design with a large mixing space
which is suitable for mixing various dry and wet materials
Its structure is simple and easy to operate and maintain
The flat mixer has a friendly operating interface
Users only need to set it up simply to start working
saving a lot of time and labor costs
It is widely used in construction, food processing
fertilizer production and other industrial fields
and can handle various types of materials to meet different production needs
Many flat mixer designs meet environmental protection standards and reduce noise and dust. At the same time, they are equipped with safety protection devices to ensure the safety of operators.
Through the above steps, the flat mixer can efficiently and evenly complete the mixing of various materials, and is widely used in many industries such as construction, food, and chemical industry.
| model number | JW350 | JW400 | JW500 | JW750 | JW1000 | JW1500 |
| Motor power(kw) | 4kw | 5.5kw | 7.5kw | 11kw | 15kw | 11kw |
| Tank volume(m³) | 0.25 | 0.38 | 0.5 | 0.75 | 1 | 1.5 |
| Machine size(cm) | 90*90*110 | 110*110*110 | 130*130*130 | 150*150*130 | 180*180*130 | 200*200*130 |
| Tank size(cm) | 90*40 | 110*40 | 130*50 | 150*50 | 180*50 | 200*70 |
| Weight of whole machine (kg) | 150 | 230 | 480 | 550 | 680 | 750 |
| Plate thickness | Side 4 Bottom 6 | Side 4 Bottom 6 | Side 6 Bottom 8 | Side 6 Bottom 8 | Side 6 Bottom 8 | Side 10Bottom 10 |
| Gearbox | Flat Box | Flat Box | Half Bridge/Full Bridge | Full Bridge | Full axle | Dongfeng Full Axle 350 Main Reducer |
